Front U-Bolt Replacement Kit for 1980–1997 Ford F-250/F-350 Trucks

Description

Replacement Front U-Bolt Kit – Ford Solid Axle Applications

Fits 1980–1997 F-250/F-350 and Solid Axle Converted 1980–1996 F-150/Bronco
Axle Compatibility:

• 1985–1997 Ford Dana 60

• 1999–2004 Ford Dana 50/60

---

🛠 Application Details:

• Designed for 3″ wide leaf springs

• All U-bolts feature a square top to fit OEM-style Ford stamped retaining plates

---

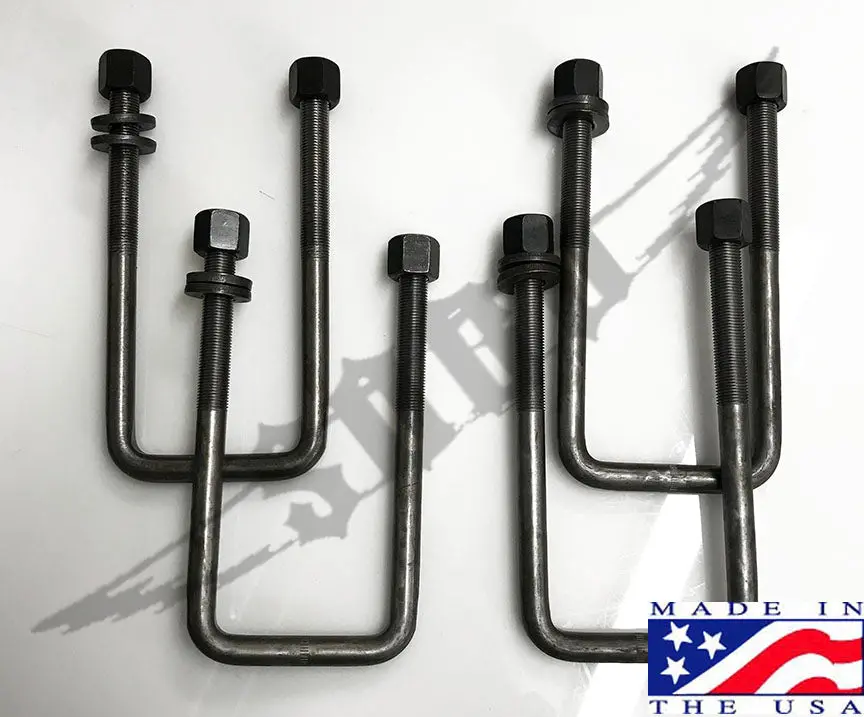

📦 Kit Includes:

• (4) U-Bolts

• (8) Nuts

• (8) Washers

---

📏 U-Bolt Options:

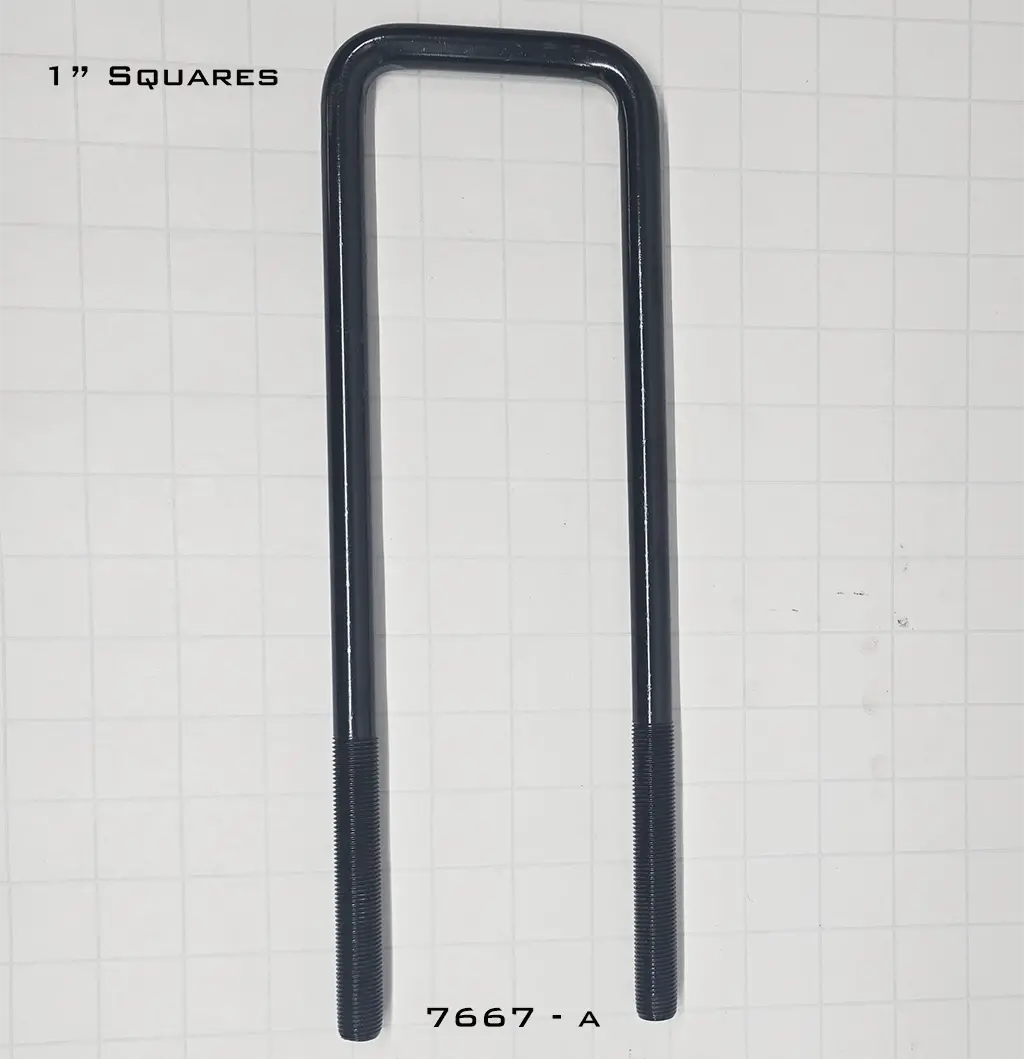

Option A – Part #7667

For thick lift spring packs

• Inside Width: 3.125″

• Length: 11.875″

• Thread Length: 4″

• Thread Pitch: 9/16″-18

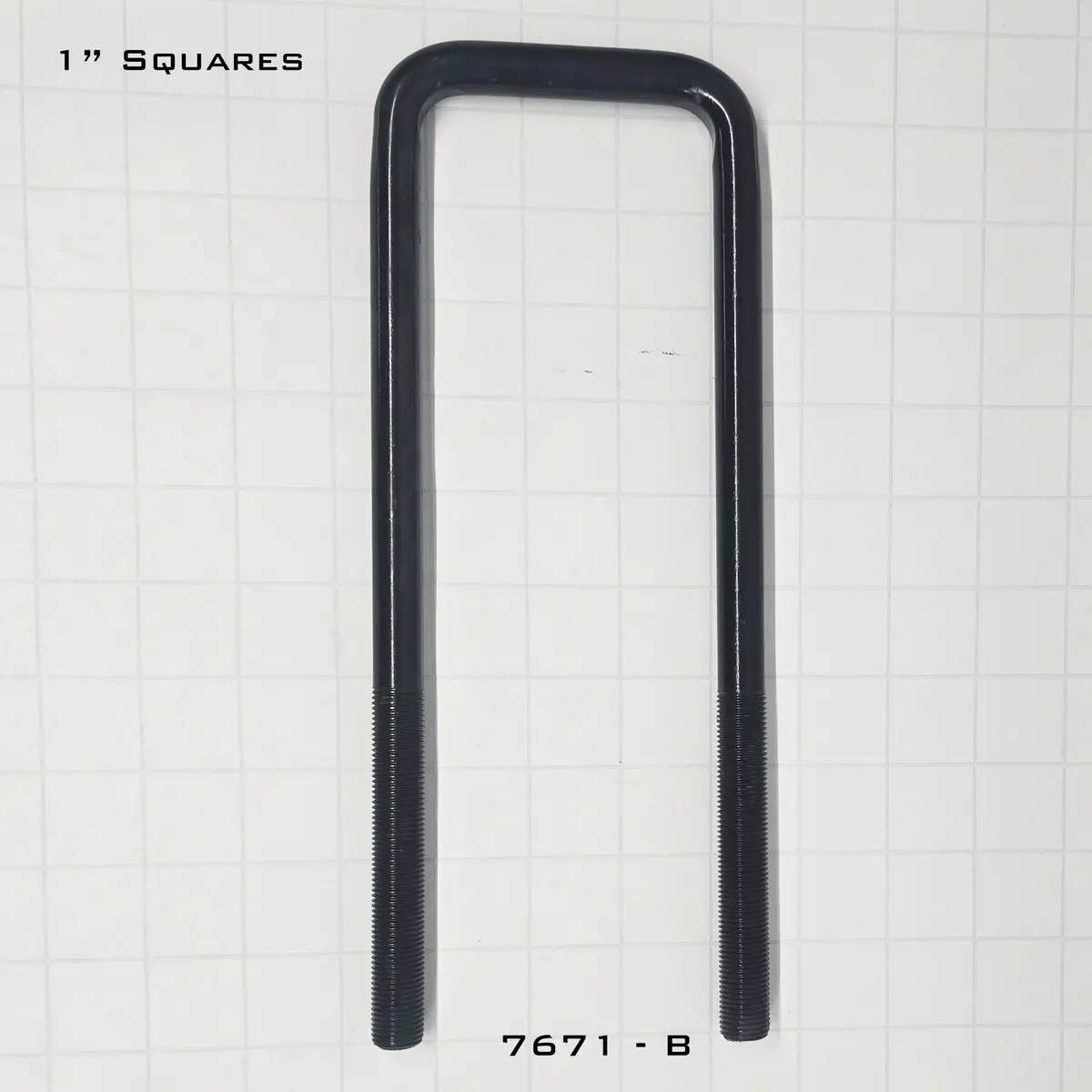

Option B – Part #7671

• Inside Width: 3.125″

• Length: 10.00″

• Thread Length: 4″

• Thread Pitch: 9/16″-18

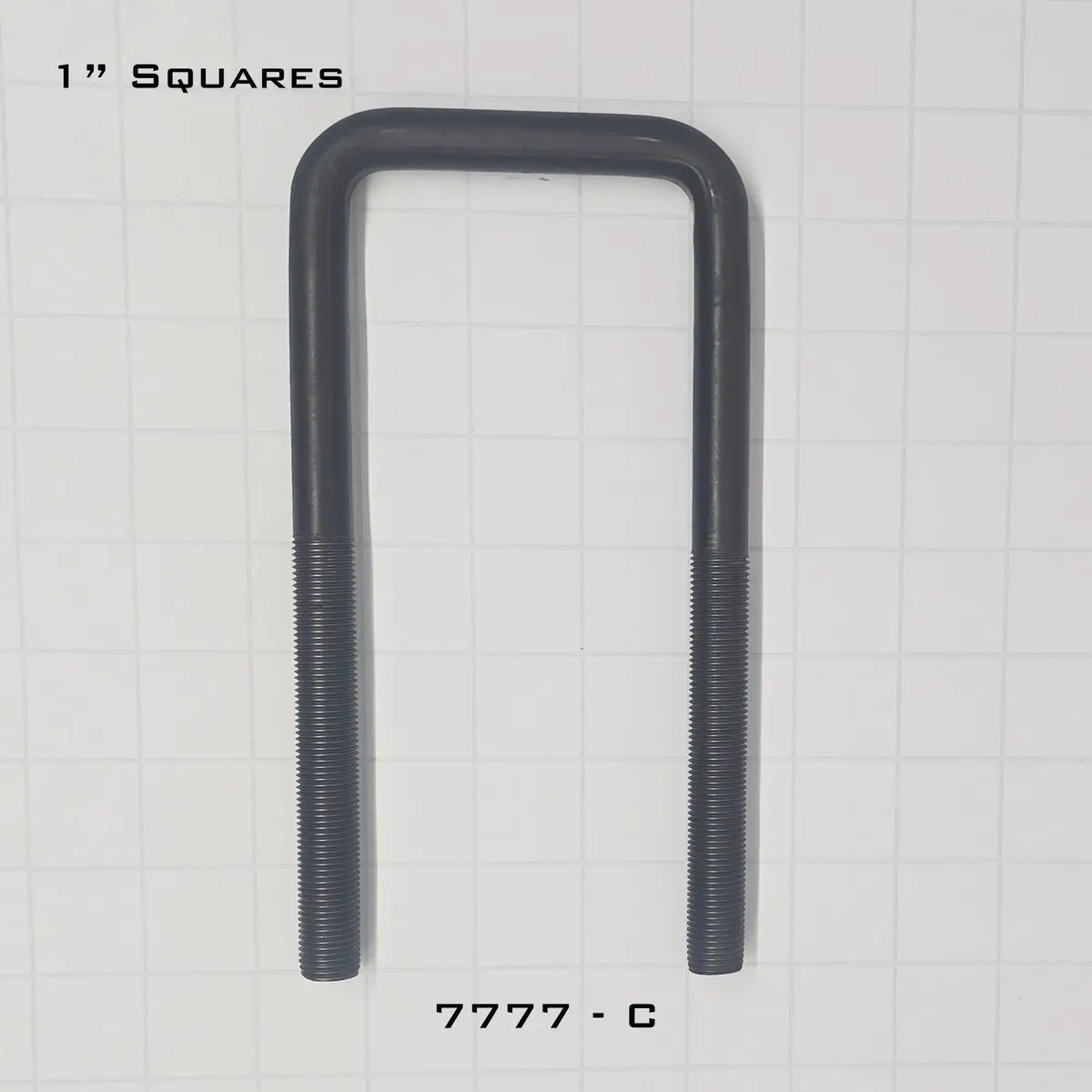

Option C – Part #7777

• Inside Width: 3.125″

• Length: 7.750″

• Thread Length: 3.25″

• Thread Pitch: 9/16″-18

Option D – Part #916203

Recommended for 1985–2004 Dana 50/60 axles with two-leaf spring packs

• Inside Width: 3.125″

• Length: 8.25″

• Thread Length: 3.75″

• Thread Pitch: 9/16″-18

---

Choose the correct option based on your spring pack height and axle combo. Ideal for lifted setups, conversions, or restoring factory geometry with upgraded hardware.
